Product type：Character LCD Module
Show contents：16x4
Outline size(mm) ：87x60x10.4
Size of View Window(mm)：62x27.2
Display size(mm) ：56.2x20.8
Point spacing(mm)：0.6x0.6
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

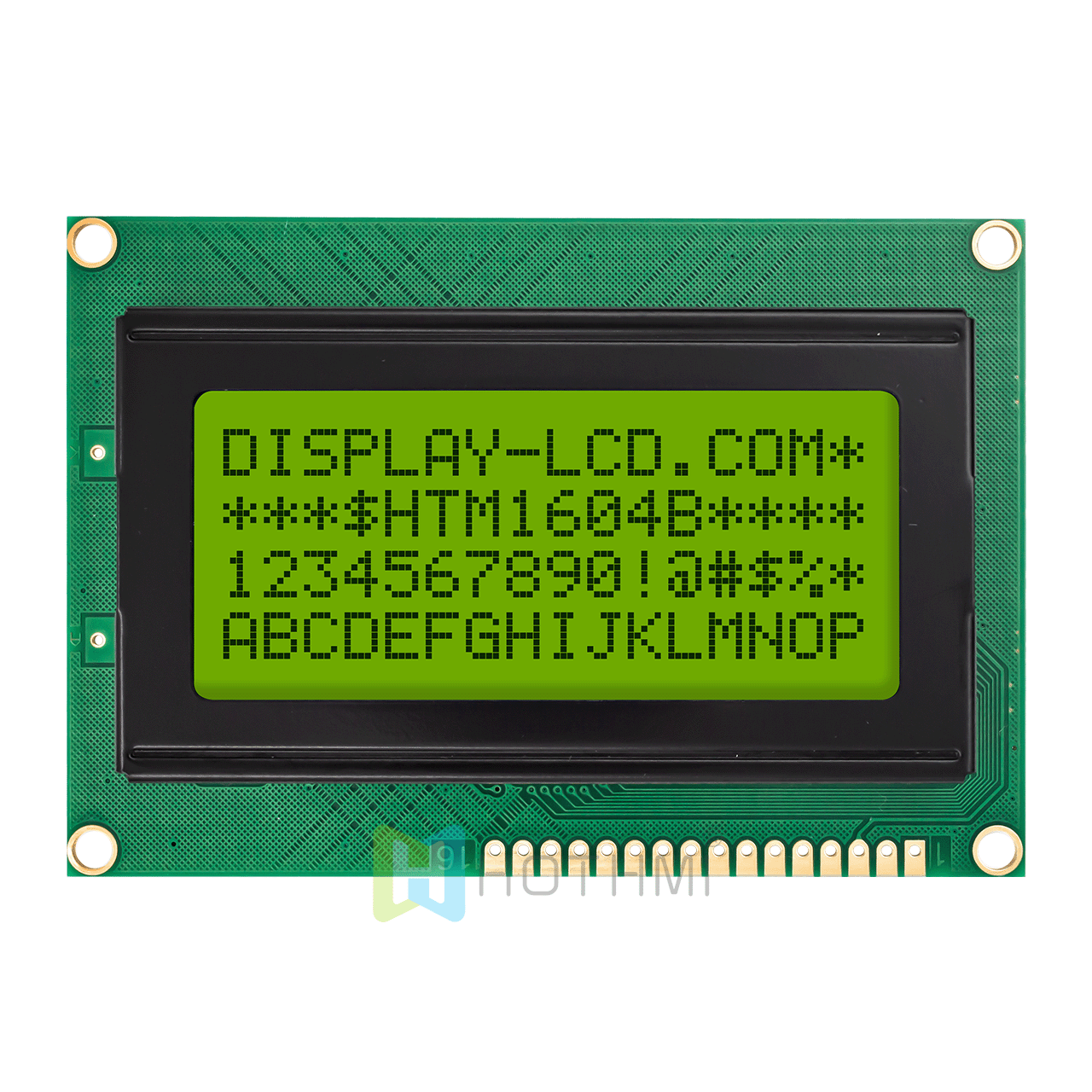

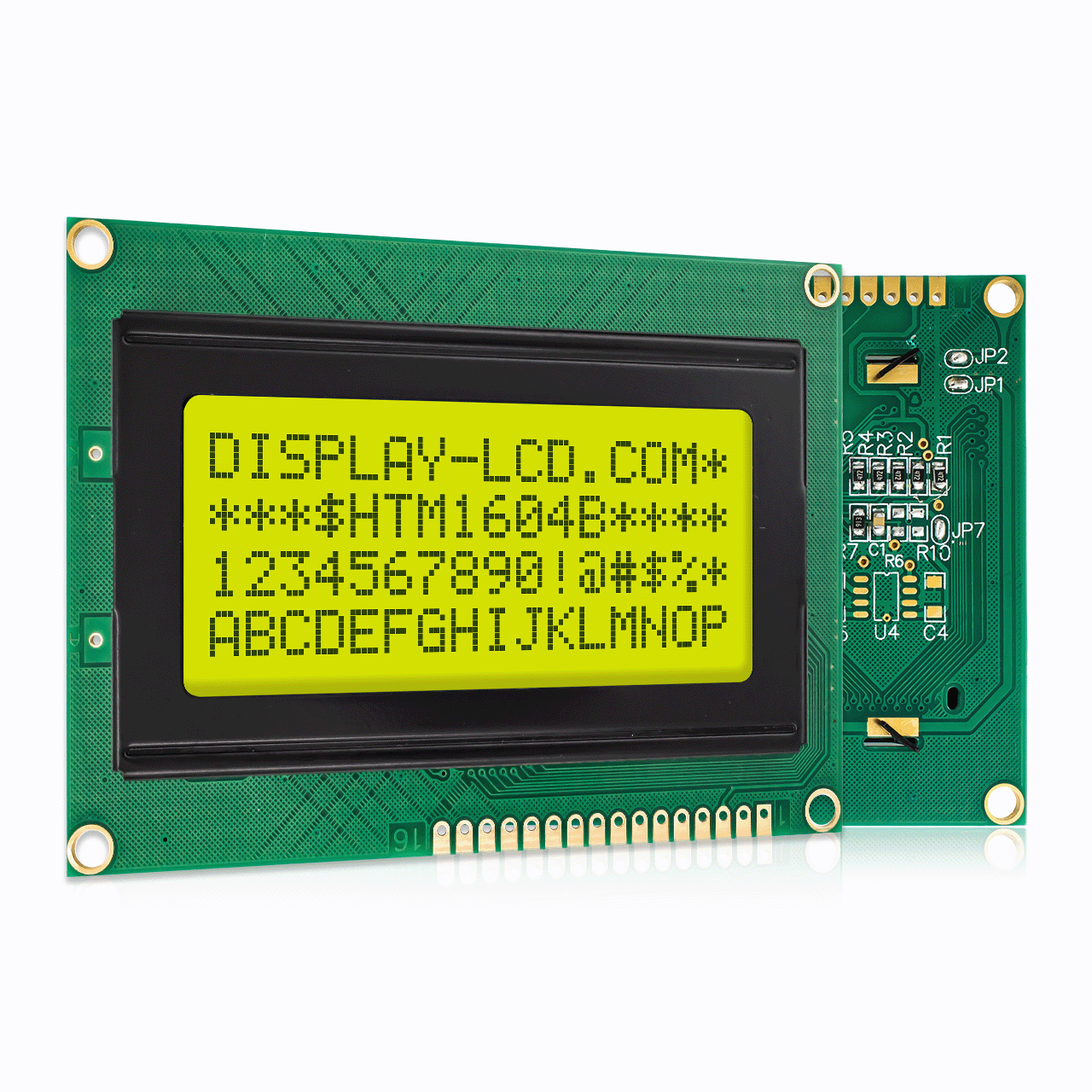

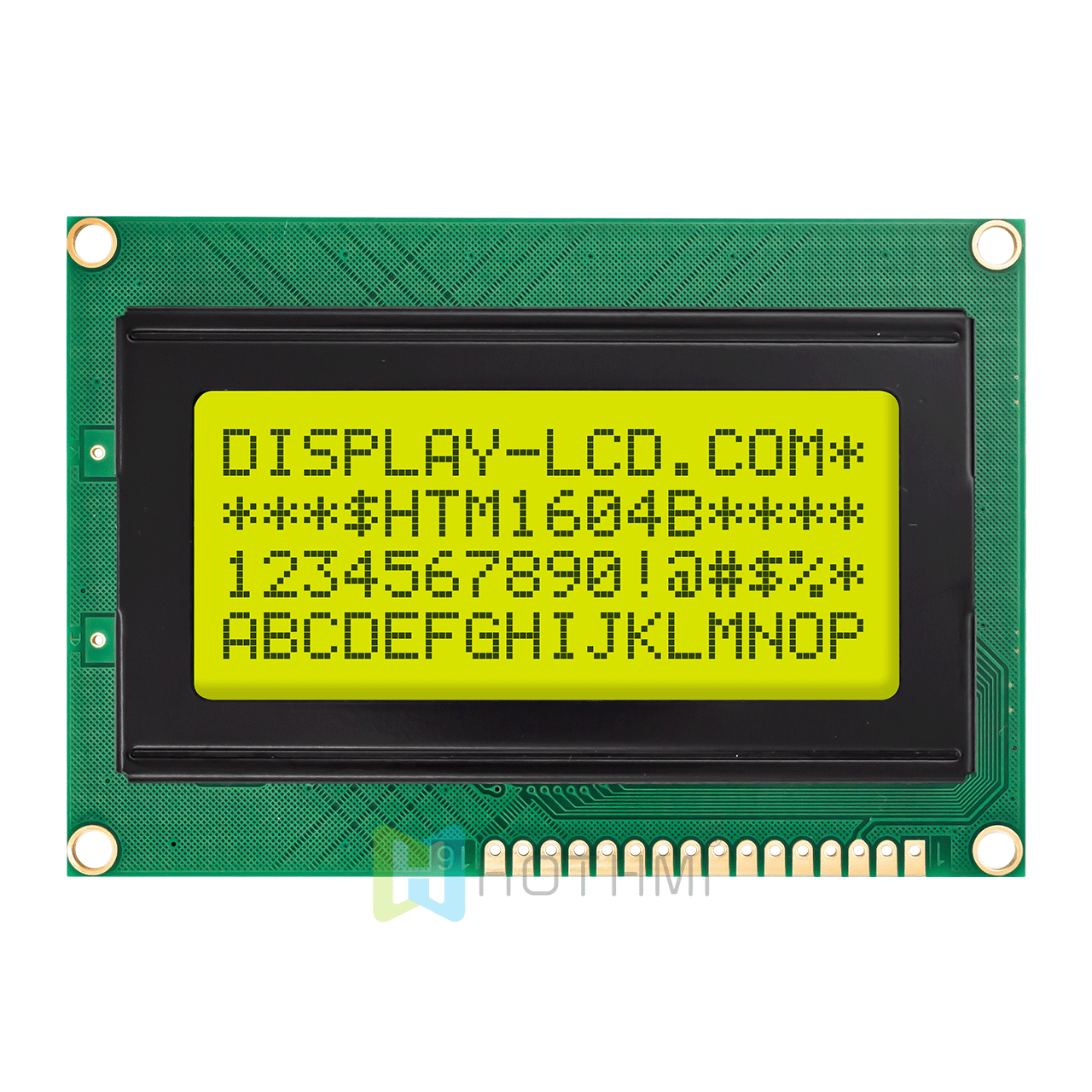

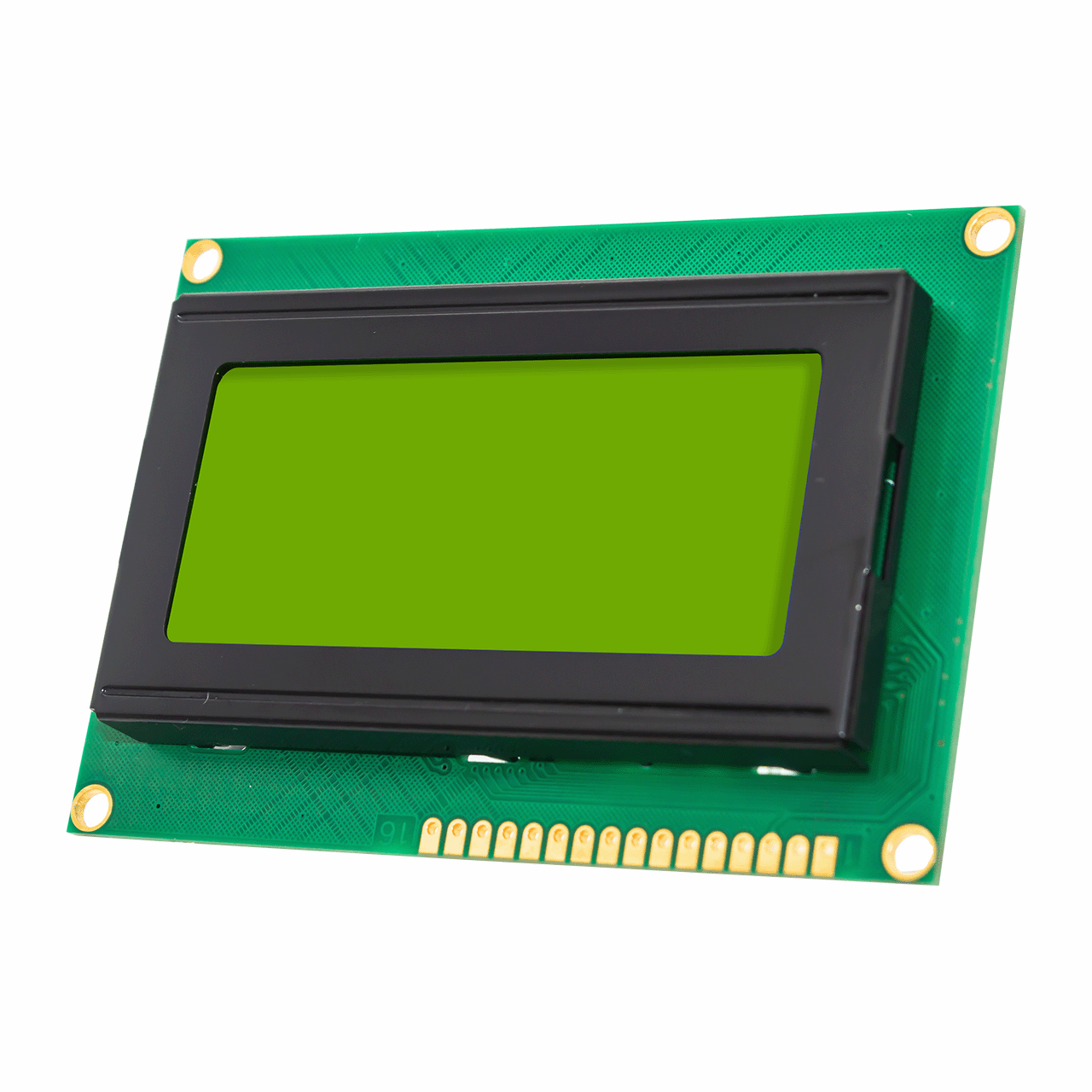

The HTM1604B-01Y-A5P 4X16 character LCD display displays characters with dark pixels on a gray background. Due to its bright backlight, the visibility of the monitor is not affected even in strong sunlight. This single line 2-character display screen is designed for robust performance and can operate effectively in a wide temperature range of -20 to 70 degrees Celsius, making it ideal for various environments. The HTM1604B-01Y-A5P model has been carefully designed to provide the best viewing effect at a 6:00 angle, ensuring that users can easily read from different positions. This monitor operates at a voltage of 5V and is compatible with Arduino and other development boards. It comes with an ST7066U controller and supports customization of various sizes, backlighting, PCB boards, English Russian or English European word libraries, and complies with RoHS standards.
