Product type：COG
Show contents：240x160
Outline size(mm) ：60.0x49.5x5.6
Size of View Window(mm)：56.0x38.7
Display size(mm) ：51.94x34.62
Point spacing(mm)：0.216x0.216
Product application：Instruments
Visual angle：6H

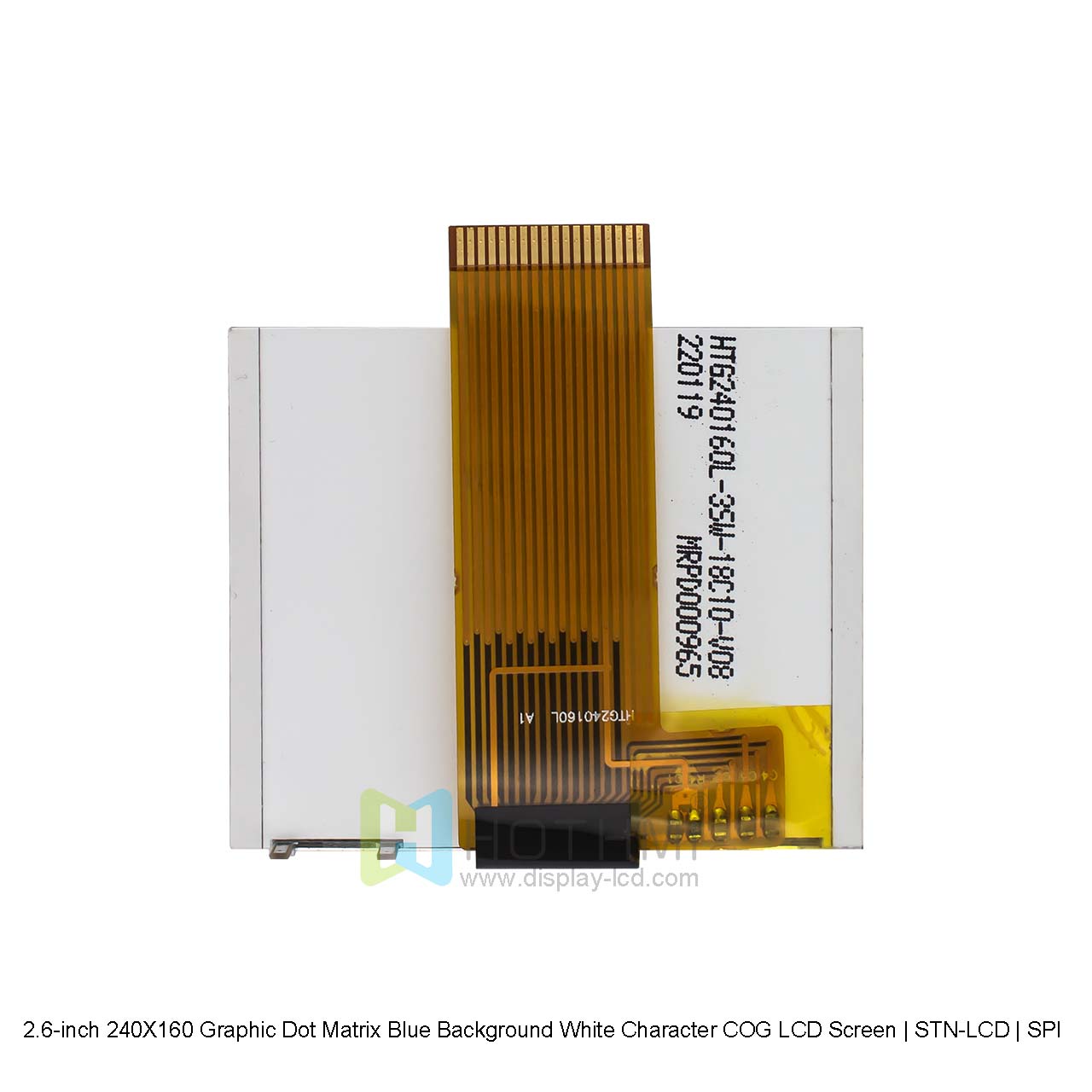

Connection PIN Number：FPC-18PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：UC1698U

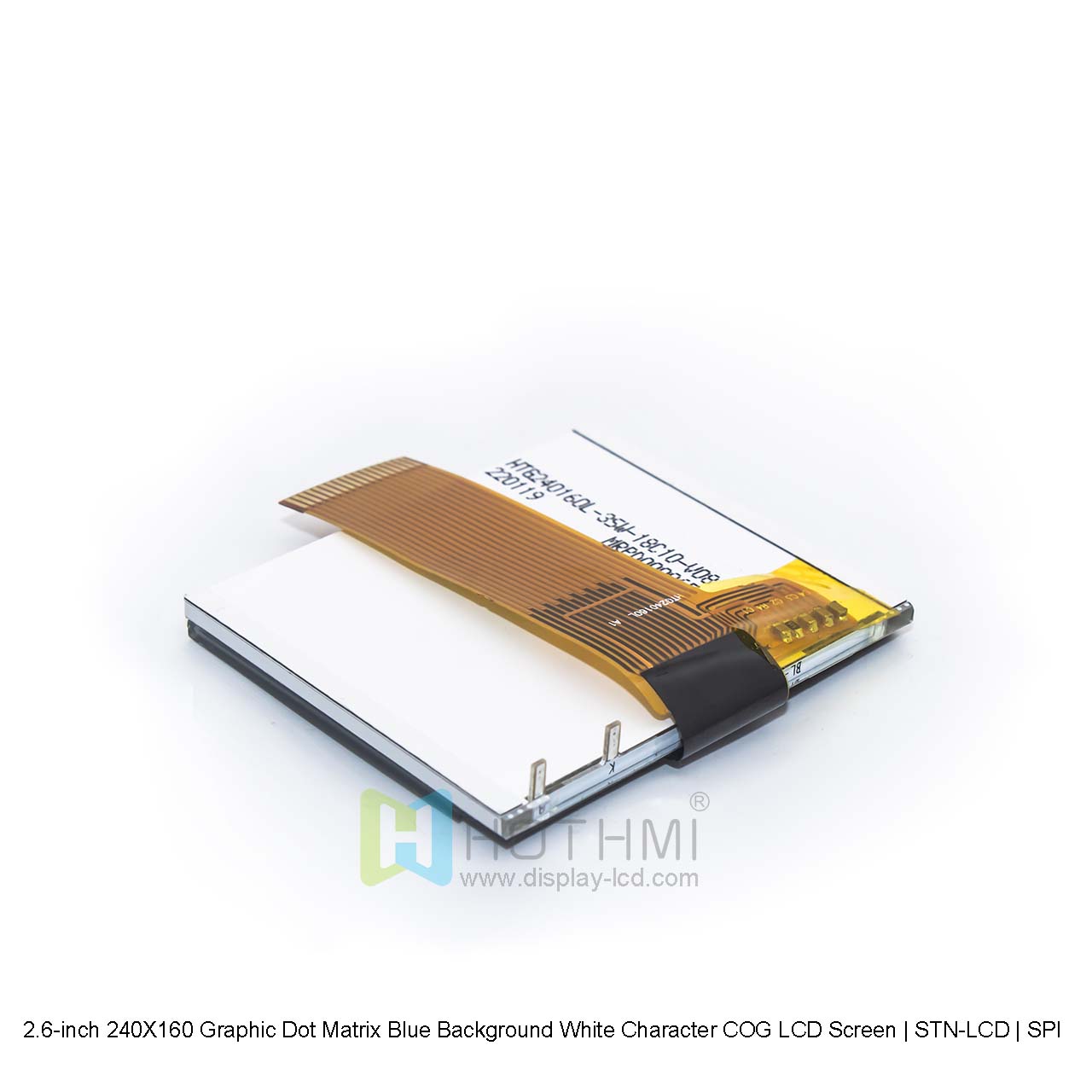

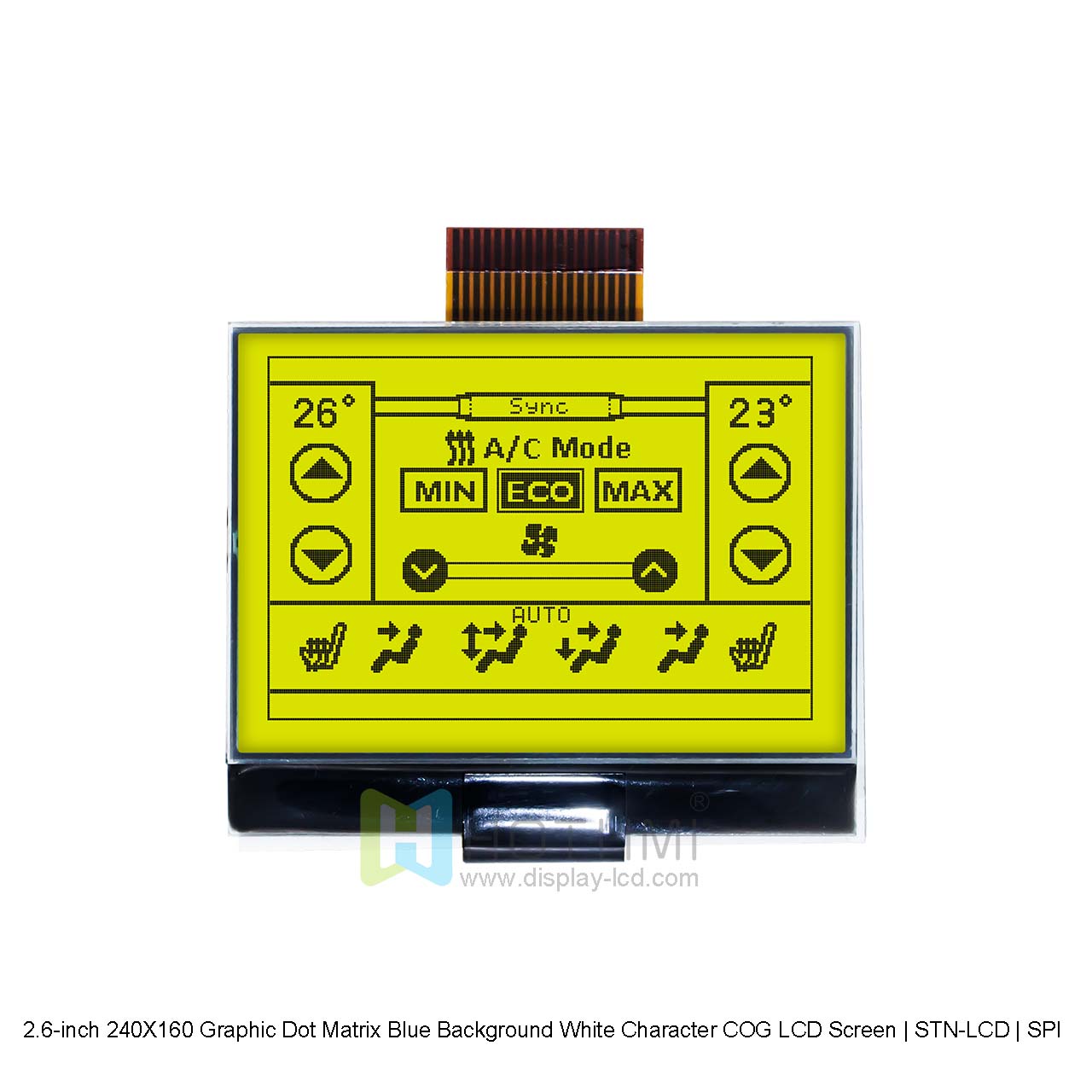

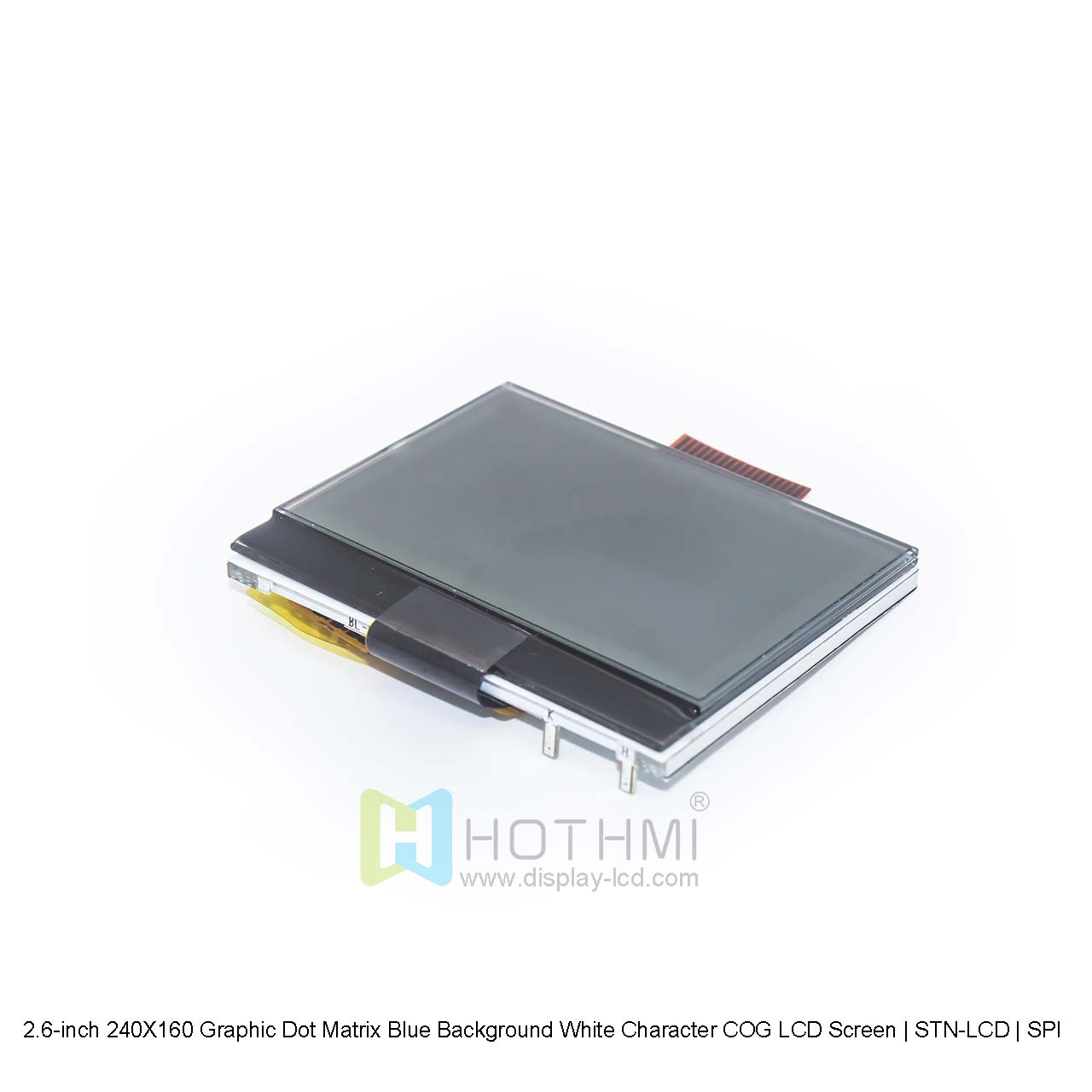

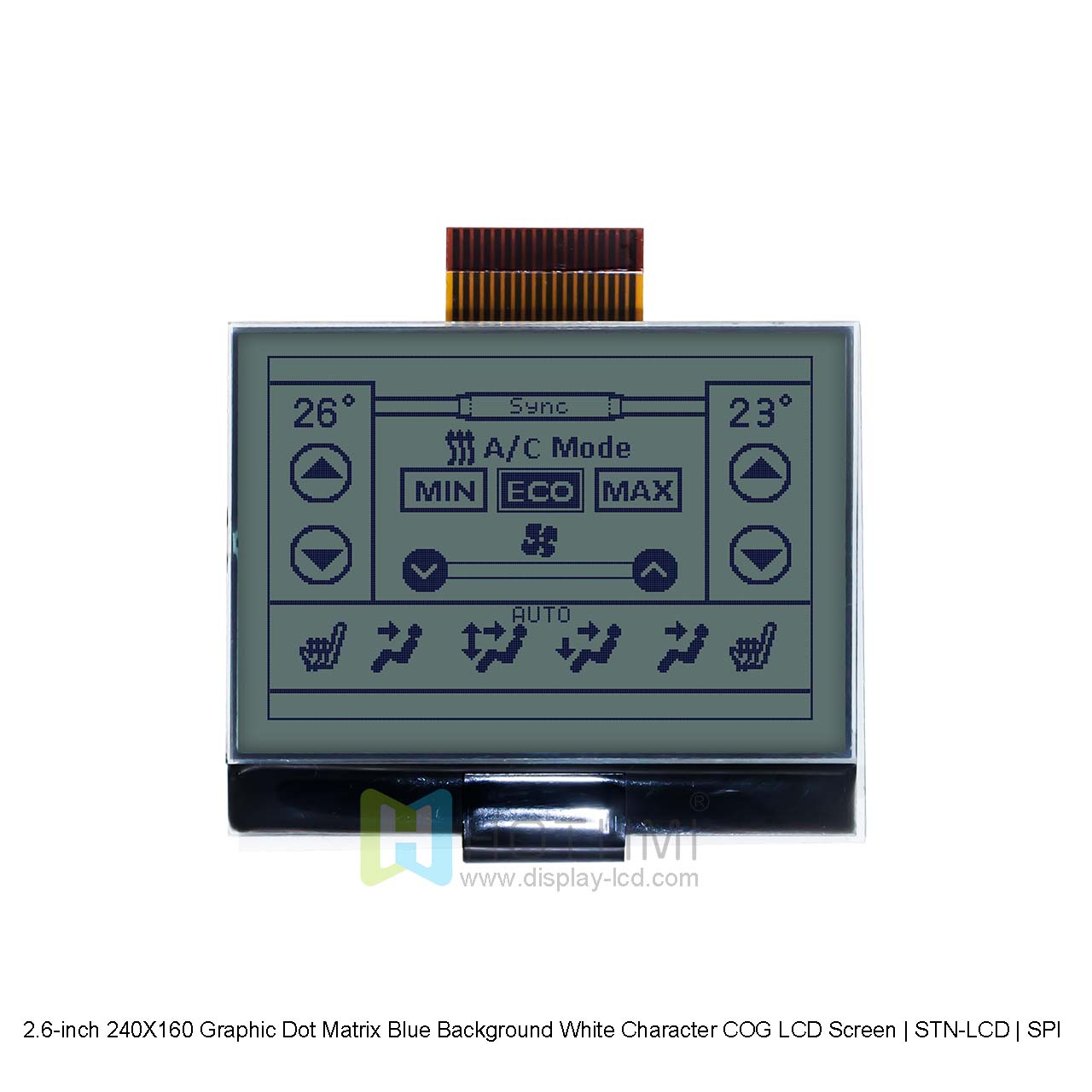

This HOTLCD 240160 Graphic Glass Chip (COG) LCD Display Module displays dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
The display module uses innovative reflective-transmissive hybrid LCD technology to achieve sharp display effects with black text on a yellow-green background at a resolution of 240×160 pixels. Its dual-mode optical system can intelligently adapt to the ambient illumination: when the ambient light intensity is greater than 10,000 lux, the reflective layer can efficiently reflect more than 85% of the incident light to ensure visibility under strong light; in low-light environments, the integrated LED backlight module can provide a brightness output of up to 450cd/m2, combined with a 5:1 contrast enhancement algorithm to achieve clear imaging in dark environments.
