With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

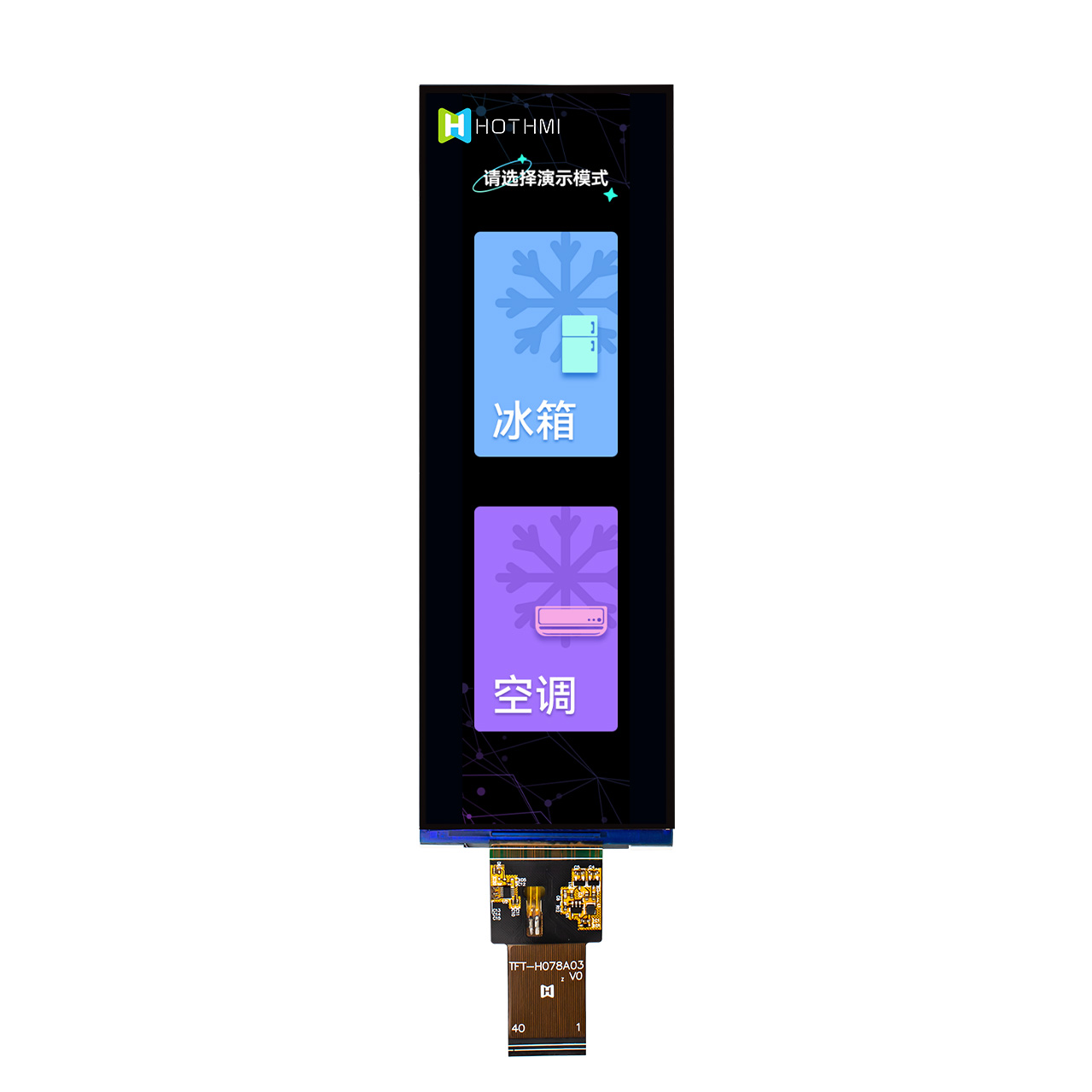

| 7.8" TFT LCD Display Module | 400x1280 RGB TFT Screen | NV3051 TFT-H078A03ZAINV7N40 | TFT Display | FPC-40PIN |
|
65.2x201.18x3.3 | 7.8 | 7.8 | 59.40x190.08 | IPS | 700cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | NV3041 | |

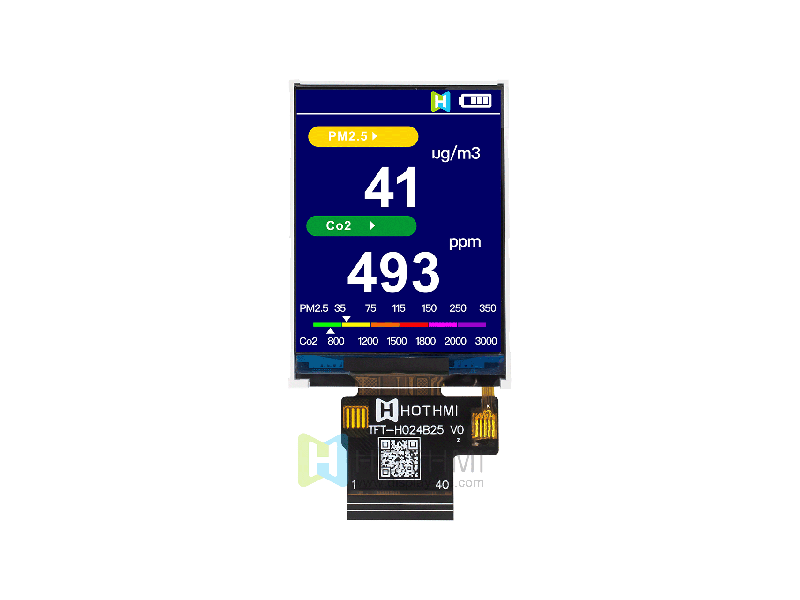

| 2.4 inch 240x320 IPS TFT LCD/MCU interface/C8051/Arduino/STM32/ST7789TFT-H024B25QVTST4N40 | TFT Display | 240x320 |
|
42.72.0x60.26x2.3 | 2.4 | 2.4 | 36.72x48.96 | IPS | 400cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789<TFT> | |

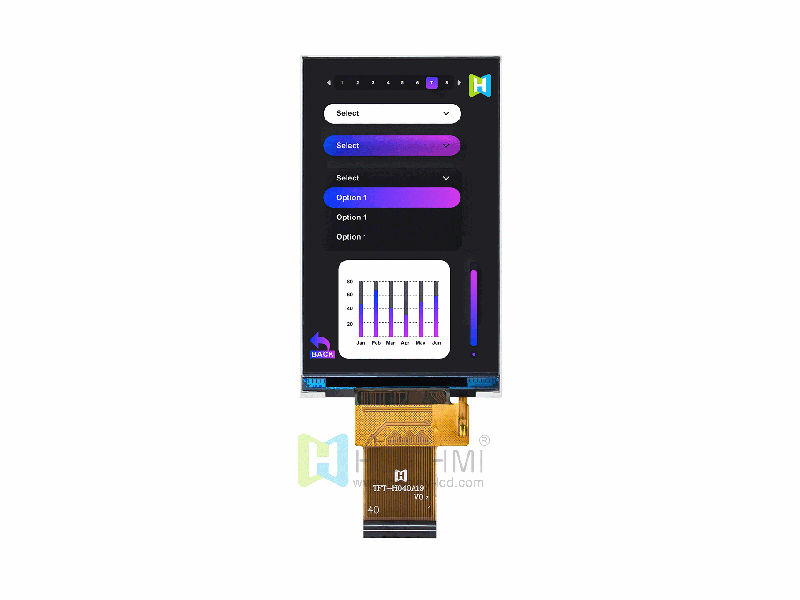

| 4.0-inch 480x800 IPS TFT LCD/ST7701S/STM32/RK series TFT-H040A19WVIST5N40 | TFT | 480x800 |
|
57.14x96.85x2.00 | 4.0 | 4.0 | 51.84x86.4 | IPS | 500cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | -20~70℃ | |

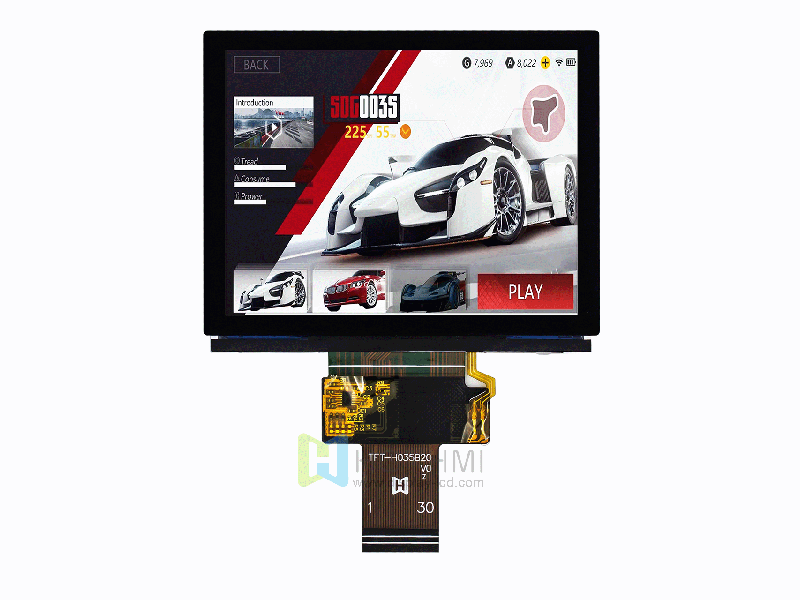

| 3.5-inch 640x480 full-color IPS display/TFT LCD with glass cover/ST7703 controller TFT-H035B20VGIST4G30 | TFT | 640x480 |
|
79.5x67.2x4.75 | 3.5 | 3.5 | 70.08X52.56 | IPS | 400cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7703 | |

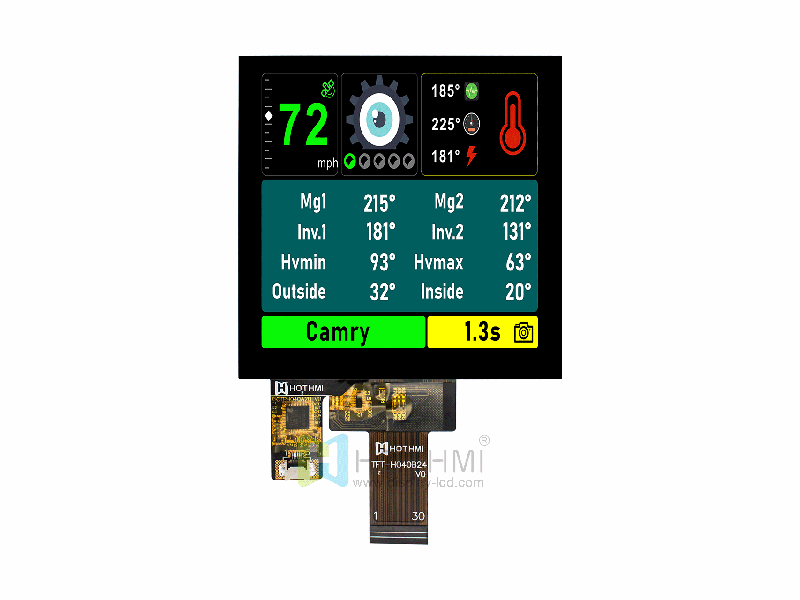

| 720X720 4.0-inch Square Capacitive Touch Display/Square TFT LCD/Plug-in FPC TFT-H040B24ZKIST3C30 | Square TFT | 720x720 |
|
84.0x84.0x4.31 | 4.0 | 4.0 | 71.928x71.928 | U85/D85/R85/L85(Typ.) | 71.928x71.928 | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703<TFT>,GT911<CTP> | ||

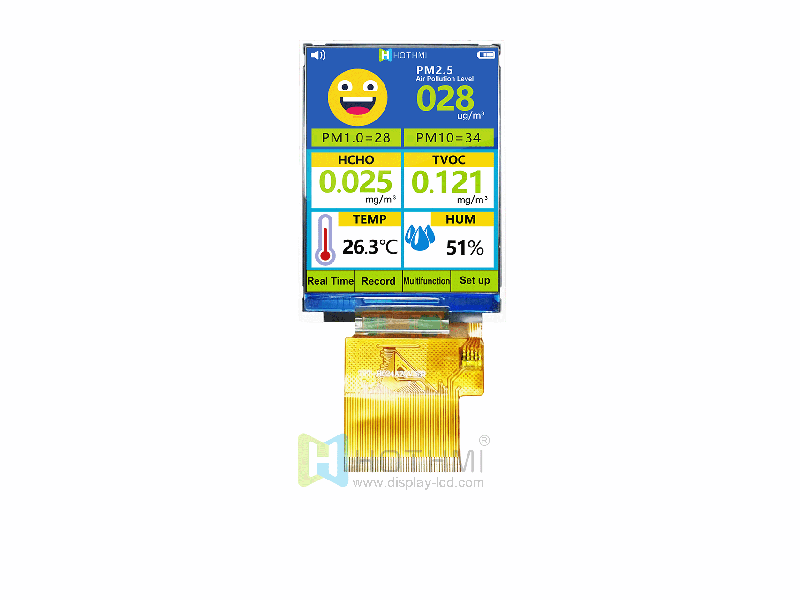

| 2.4-inch 240x320 resolution full-color IPS TFT LCD/ST7789V controller TFT-H024A7QVIST8N45 | TFT | 240x320 |
|
42.52x59.86x2.2 | 2.4 | 2.4 | 36.72x48.96 | IPS | 800cd/m2 | FPC-45 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789V | |
| 4.3-inch 480x800/full-color IPS TFT/ ST7701 controller/STM32/RK TFT-H043B15WVIST3C45 | TFT | 480x800 |
|
66.66x102.97 | 4.3 | 4.3 | 56.16x93.6 | IPS full viewing angle | 350cd/m2 | FPC-45 pin | FPC-45 pin | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7701S<TFT>,GT911<CTP> | |

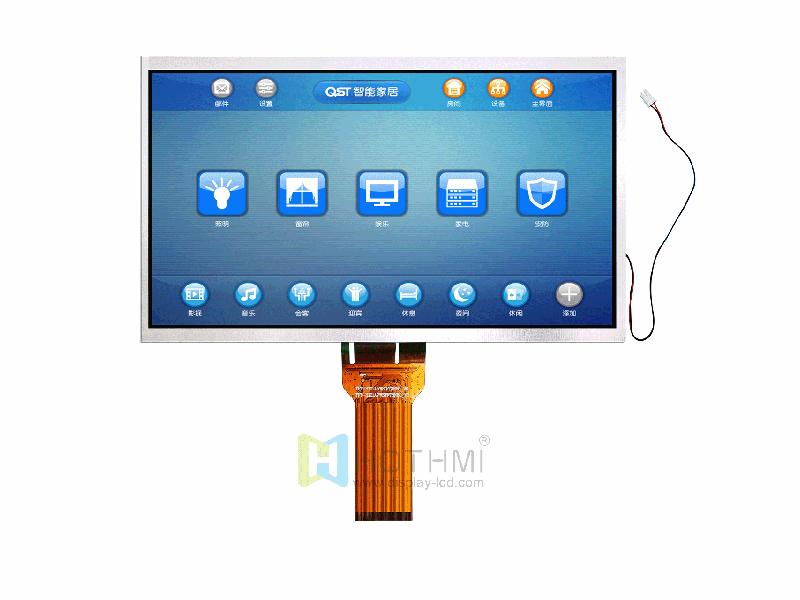

| 1024X600 10.1" High Resolution Full Color TFT LCD/IPS Full Viewing Angle Display TFT-H101A5WSIFT3N50 | TFT | 1024x600 |
|
235x143x3.0 | 10.1 | 10.1 | 222.72x125.28 | IPS | 300cd/m2 | FPC-50 pin | TTL | Anti-static ESD 8KV | -20~70℃ | +3.3V | EK79001+EK73215(TFT) | |

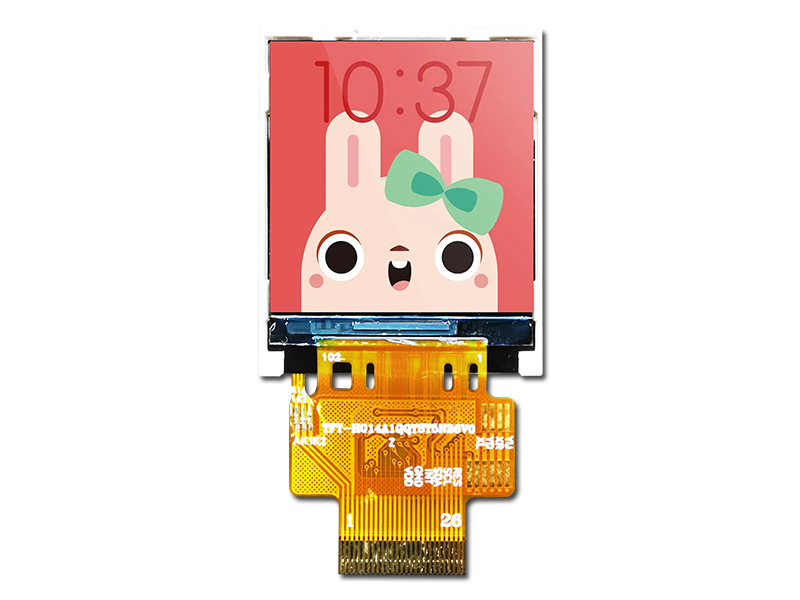

| 1.44" Color Display / 128x128 Square Full Color TFT / ST7735S Controller TFT-H014A1QQTST5N26 | TFT | 128x128 |
|
29.5x36.5x2.55 | 1.44 | 1.44 | 25.498x26.496 | 12 O'Clock (U70/D60/L70/R70) | 500cd/m2 | FPC-26 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7735S | |

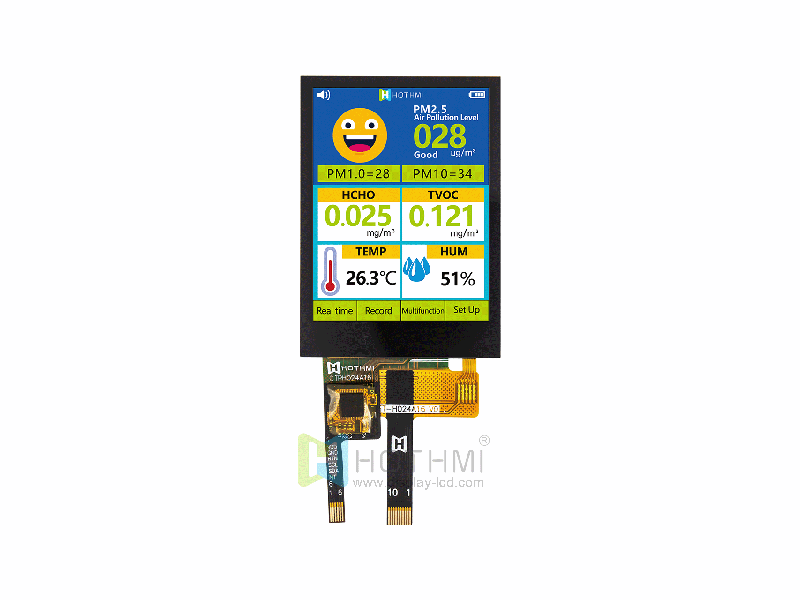

| 2.4" Capacitive Touchscreen Color TFT 240x320, ST7789 Controller TFT-H024A16QVIST4C10 | TFT | 240x320 |
|
42.72x59.86x3.7 | 2.4 | 2.4 | 36.72x48.96 | U85/D85/R85/L85(Typ.) | 450cd/m2 | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | -20~70℃ |
